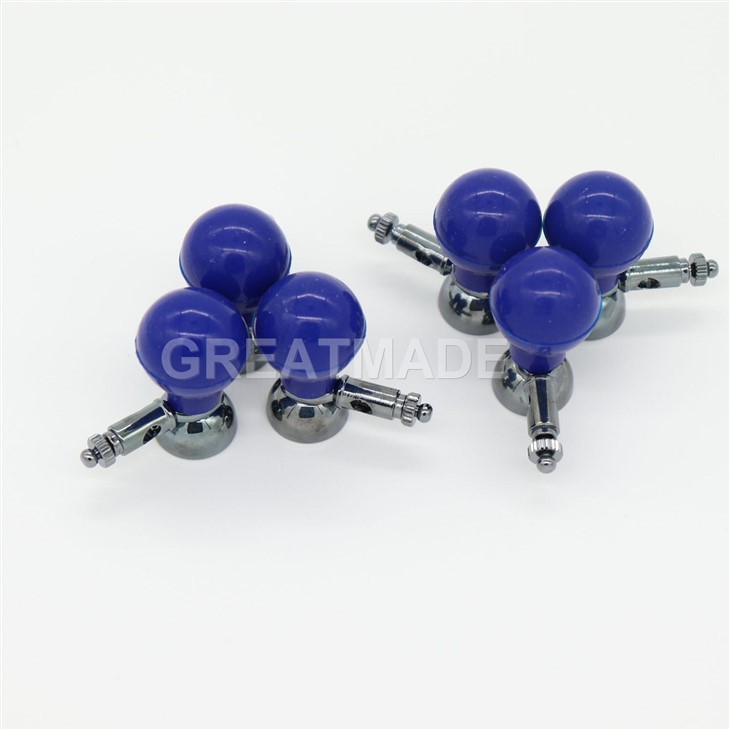

Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi-use Limb Electrode And Suction Electrode

Pediatric Multi-use Limb Electrode And Suction Electrode

ECG’s are important modalities with which to diagnose structural heart abnormalities and arrhythmias in children. They can also be important indicators of cardiac muscle injury or inflammation. The percentage of ECG’s needing improved technique in Golisano Children’s hospital varies by unit. Some units perform a large volume of ECG’s yet have room for improvement.

การแนะนำสินค้า

Pediatric Multi-use Limb Electrode And Suction Electrode

For infants, toddlers, and children under 90 lbs, measuring rib spaces is not usually possible. For all ECGs, limb leads should be placed on the limbs — not the torso. Arm leads should be placed just above the elbows. Leg leads should be placed between the knee and ankle.

V1 4th intercostal space to the right of the sternum (about ½ inch to 1 inch from the midline)

V2 4th intercostal space to the left of the sternum (about ½ inch to 1 inch from the midline)

V3 Midway between V2 and V4

V4 5th intercostal space at the midclavicular line (at the nipple line)

V5 Anterior axillary line at the same level as V4 (where the ribs curve back)

V6 Midaxillary line at the same level as V4 and V5 (should be below the armpit)

pediatric ecg lead placement
